■ Application:

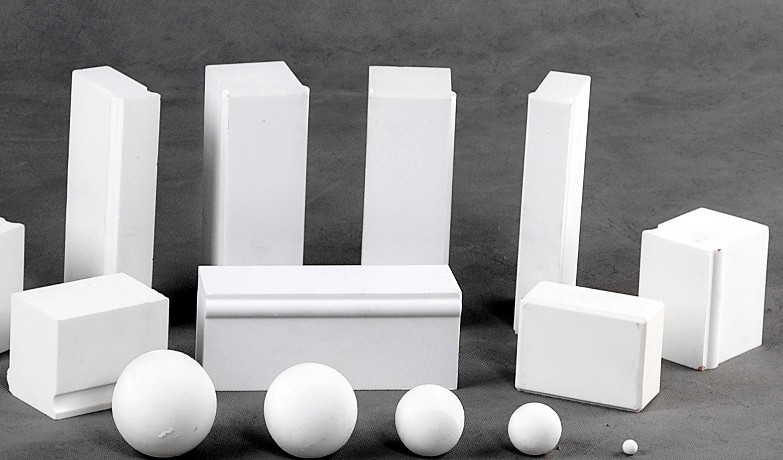

The DuraLiner® alumina lining bricks are used as the lining in the ball mill of ceramic industry, cement Industry,
paint industry, color industry, chemical industry medicine industry and coating industry. Using this liner will
effectively improve grinding efficiency, reduce grinding cost, and it is considered to be the best choice for
ball mill lining.
■Technical Data Sheet :
|
Items |
DuraLiner®70 |
DuraLiner®75 |
DuraLiner®93 |
Duraliner®95 |
|
Specific Gravity g/cm3 |
2.95～3.02 |
3.33～3.36 |
3.60～3.65 |
3.70～3.75 |
|
Hardness（Mohs Scale） |
8.5 |
8.5 |
9 |
9 |
|
Compression Strength MPa |
≥1700 |
≥1800 |
≥2000 |
≥2250 |
|
Color |
yellowish |
White |
White |
White |
■Regular Sizes:
|
Item |
L (mm) |
W1 mm |
W2 mm |
Thickness(mm) |
|
DuraLiner®93/95- Straight |
150 |
50 |
/ |
40/50/60/70 |
|
DuraLiner®93/95 -Trapezoidal |
150 |
50 |
45 |
40/50/60/70 |
|
DuraLiner®70/75- Straight |
160 |
40 |
/ |
60/70/80/100 |
|
DuraLiner®70/75 -Trapezoidal |
160 |
40 |
35 |
60/70/80/100 |
■Advantages：
•high purity without contamination
•excellent wear resistance, longer service life.
•improve productivity due to less shutdown time for maintenance.
|
